DC-6000MHz 50W Attenuator SMA Male To SMA Female
RF attenuators model number VN-AT-4G-200W-IPX-R.RF attenuators has been
manufactured with the highest quality materials to ensure long-lasting use and durability.
These RF attenuators can be fixed, switched,surface mounted or even continuously variable.
| Part Number | VN-AT-6G-50W-SMA30 |
| Operating Frequency ( MHz ) | DC-6000 |
| Impedance ( Ohm ) | 50 |
| VSWR | ≤1.30 |
| Attenuation(dB) | 30 |
| Attenuation Tolerance(dB) | ±1.3 |
| Interface | SMA Male - SMA Female |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Application | Indoor |
| Handling Power (Watt, max) | 50 |

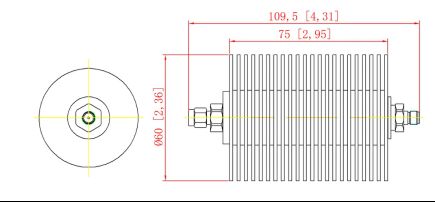

| Dimension (mm)(L*W*H, excl connector) | Φ60X75 |
| Packing Dimensions (mm,L*W*H) | 65X65X210 |
| Packing Carton Size (mm,L*W*H) | 350X350X220 |
| ROHS Compliance | Yes |
|
|
