| MOQ: | 5개 |
| 가격: | negotiable |
| 결제 방법: | l/c, d/a, d/p, t/t |
| 공급 능력: | 일 당 500 PC |
1-6GHz 90° Hybrid Coupler
| Part Number | VN-HC90°-1G-6G-SMAF |
| Operating Frequency ( MHz ) | 1000-6000 |
| Phase Difference ( Ohm ) | 90° |
| Nominal Split (dB) | 3.01 |
| Insertion Loss (dB) | ≤0.7 |
| VSWR | ≤1.25:1 |
| Amplitude Balance(dB) | ≤±0.6 |
| Phase Balance(°) | ≤±5.0 |
| Isolation(dB) | ≥20 |
| Impedance | 50 |
| Net Weight(KG) | 0.15 |
| Connectors | SMA-F |
| Power (Watt, max) | Average: 50W ; Peak: 1000W |

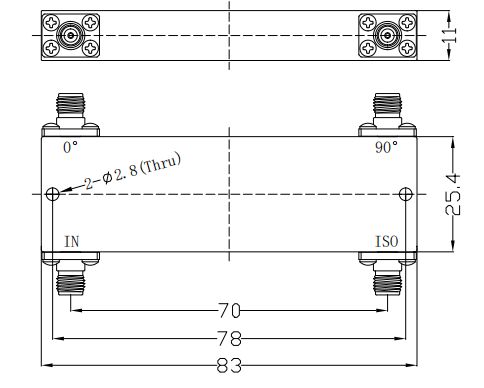

| Dimension (mm)(L×W×H, excl connector) | 83*25.4*11 |
| ROHS Compliance | Yes |
|
|
